Earthmoving & mining radial tyres (OTR)

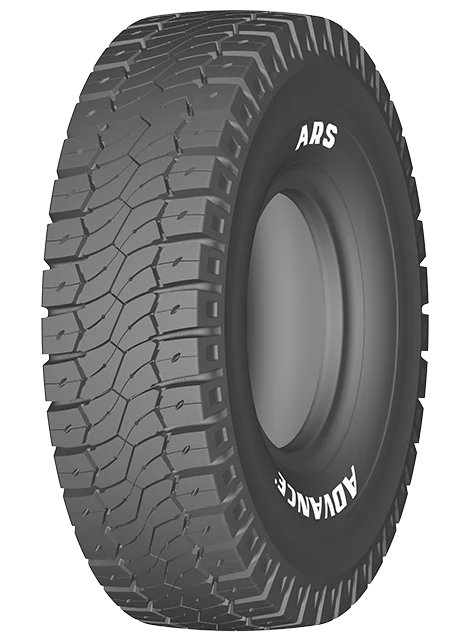

OTR earthmoving tyre ADVANCE ARS 27.00R49 **
27.00R49
**
ARS
ADVANCE
ADVANCE ARS heavy-duty all-steel radial OTR tyre, manufactured in China by Guizhou Tyre (GTC Global). Purpose-built for open-pit mining, construction sites and extra-long, extra-heavy tyre cranes.
Key figures
| Specification | Value |
|---|---|
| Standard rim | 49 inch |
| Load index (LI) | 223B |
| Speed symbol | B (50 km/h) |
| Tread depth | 54.0 mm |
| Standard inflation pressure | 700 kPa (102 PSI) |
| Maximum load | 23,600 kg |
| Overall diameter | 2,175 mm |
| Section width | 655 mm |
| Origin | Made in China |
Technical features
- Outstanding anti-cut tread compound on sharp rock surfaces.
- Wide shoulder design with solid tread blocks maximises traction on steep grades.
- An ultra-durable casing allows continuous 24/7 operation under extreme load.
- Certified to international standards DOT (USA), E-MARK (Europe) and ISO9001.
Recommended applications
Rigid dump trucks, wheel loaders, mobile cranes and motor graders.
Which vehicles is the ARS 27.00R49 tyre for?
Size 27.00R49 uses a 49 inch rim.
Quick questions about 27.00R49 ARS
- Does the 27.00R49 ARS tyre come with a tube?
- This size is supplied as a loose tyre, without tube and flap.
- What are the inflation pressure and maximum load of 27.00R49 ARS?
- Standard inflation pressure is 700 kPa (102 PSI), maximum load 23,600 kg. Always inflate when the tyre is cold and check the vehicle manufacturer’s recommendation.
- Where is this tyre made and how do I order?
- Made in China. This website only takes quotation requests and does not sell online: add the tyre to your quotation and send it, and we reply within 24 working hours.
Specifications are checked against Guizhou Tyre technical catalogues (2023–2026).
Prices are agreed per project. Quotation requests are answered within 24 working hours.
